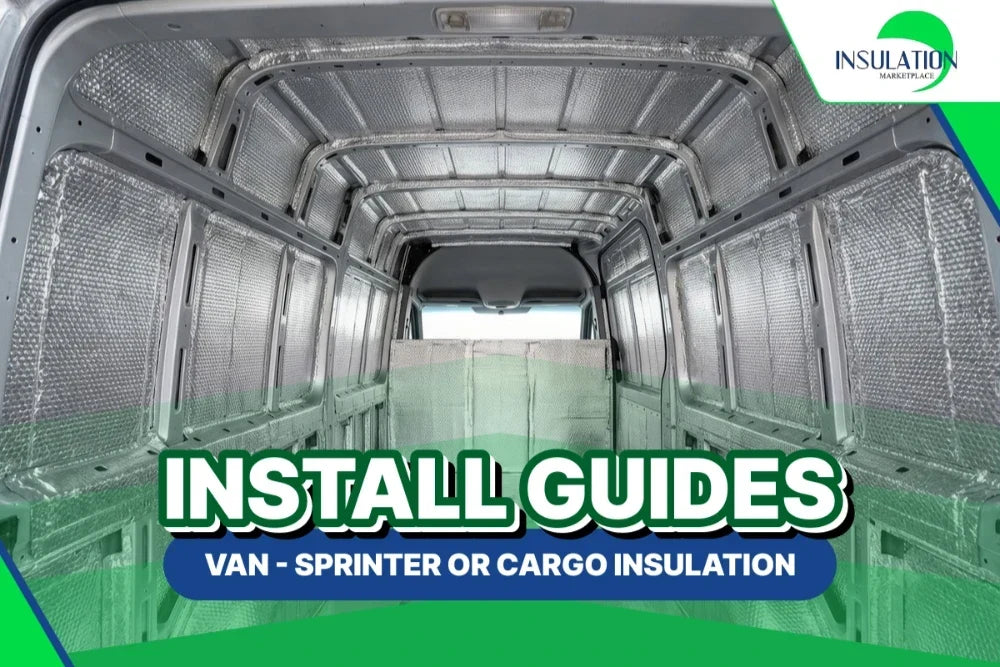

Bare van metal turns a Sprinter or cargo van into an oven in summer and a fridge in winter, and warm air hitting cold steel sweats with condensation that leads to rust and mold. A reflective insulation layer fixes all three: it reflects heat, breaks the thermal bridge, and acts as a built-in vapor barrier. This guide walks you through the adhesive method, which is the simplest way to insulate the tight, curved surfaces inside a van.
Products to use:
- SmartSHIELD Plus: It is an adhesive-backed XPE foam built for vehicles and RVs, so it sticks straight to clean van metal and gives you a radiant barrier, vapor barrier, and reflective insulation in one lightweight layer. For van windows, use DIY Reflective Sheets, which cut to fit the glass where a solid layer won't go.
Tools and Materials
- SmartSHIELD Plus (adhesive-backed)
- SmartTAPE (reflective foil tape)
- DIY Reflective Sheets (optional, for van windows)
- Utility knife and a straightedge
- Tape measure
- Degreaser or cleaning solution
Before You Start
- Clean the metal thoroughly so the adhesive grips. Wipe off dust, grease, and moisture and let it dry.
- Work in a well-ventilated space.
- Most van conversions need roughly 80 to 100 square feet for walls and ceiling, more if you add the floor and doors.
Van / Sprinter / Cargo Insulation Installation: Step-by-Step
Step 1: Measure and cut.
Measure your wall and ceiling panels, then cut SmartSHIELD Plus to fit each section.
Step 2: Peel and press.
Peel the backing and press the sheet firmly onto the clean metal, smoothing as you go so it bonds flat with no bubbles.
Step 3: Seal the seams.
Seal all seams and edges with SmartTAPE to complete the vapor barrier.
Step 4 (optional): Cover the windows.
For van windows, cut DIY Reflective Sheets to fit the glass and set them in place for sun protection.
Quick Tips
- A clean surface is everything. Adhesive won't bond to dust or grease, so degrease first.
- SmartSHIELD Plus is a built-in vapor barrier, so you don't need a separate vapor layer.
- Do the ceiling as well as the walls. That's where a lot of summer heat comes in.
Frequently Asked Questions
Do I still need a separate vapor barrier?
No. SmartSHIELD Plus includes a built-in vapor barrier, which simplifies the build and saves a layer.
How much do I need for my van?
Most conversions use around 80 to 100 square feet for walls and ceiling. Add more if you're insulating the floor and doors.
What about the windows?
For van windows, use DIY Reflective Sheets. They cut to fit over the glass for sun protection, which the wall insulation can't cover.
Will it help with road noise?
Yes. Alongside temperature and moisture control, the layer helps dampen road noise for a quieter ride.
