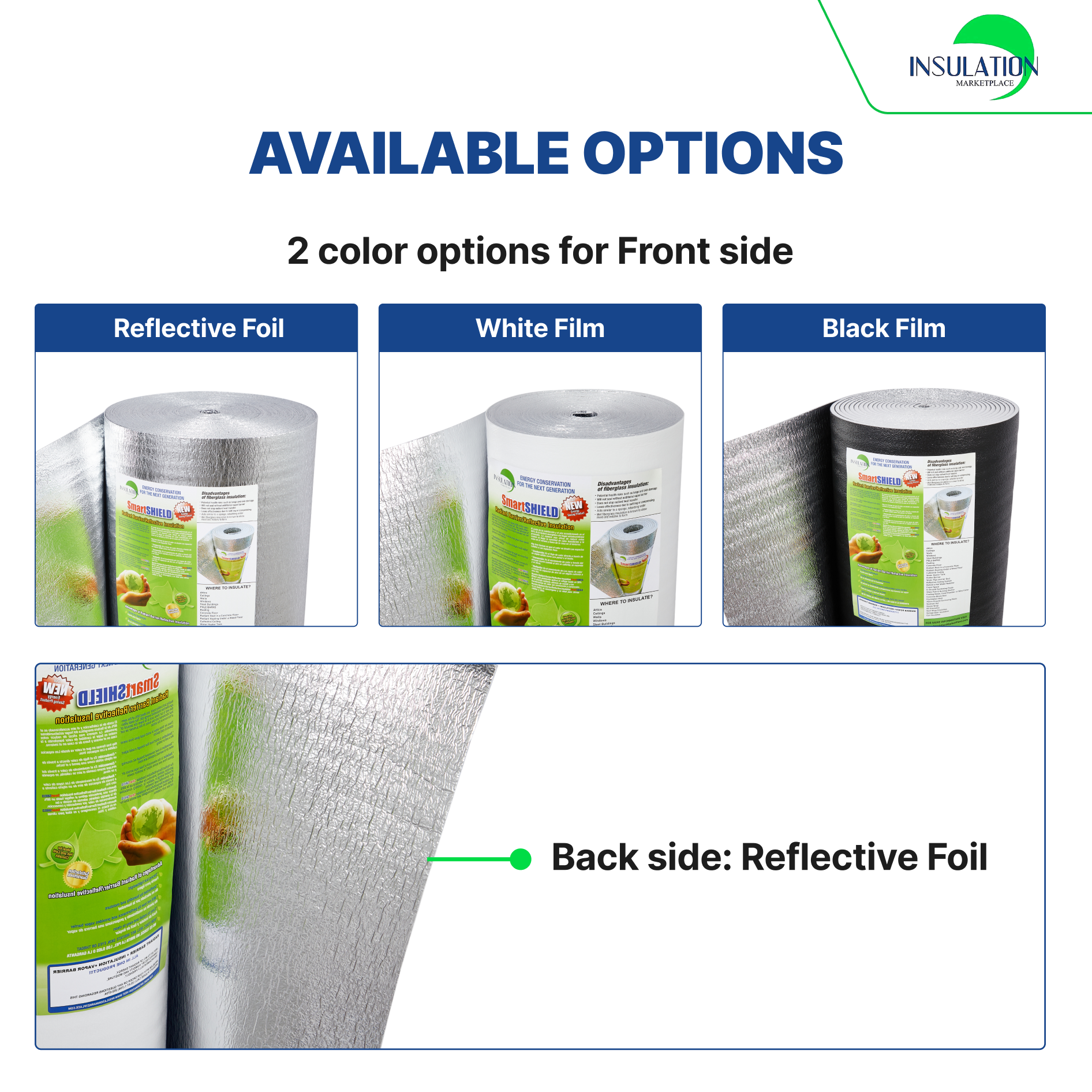

  • Available options
1 5

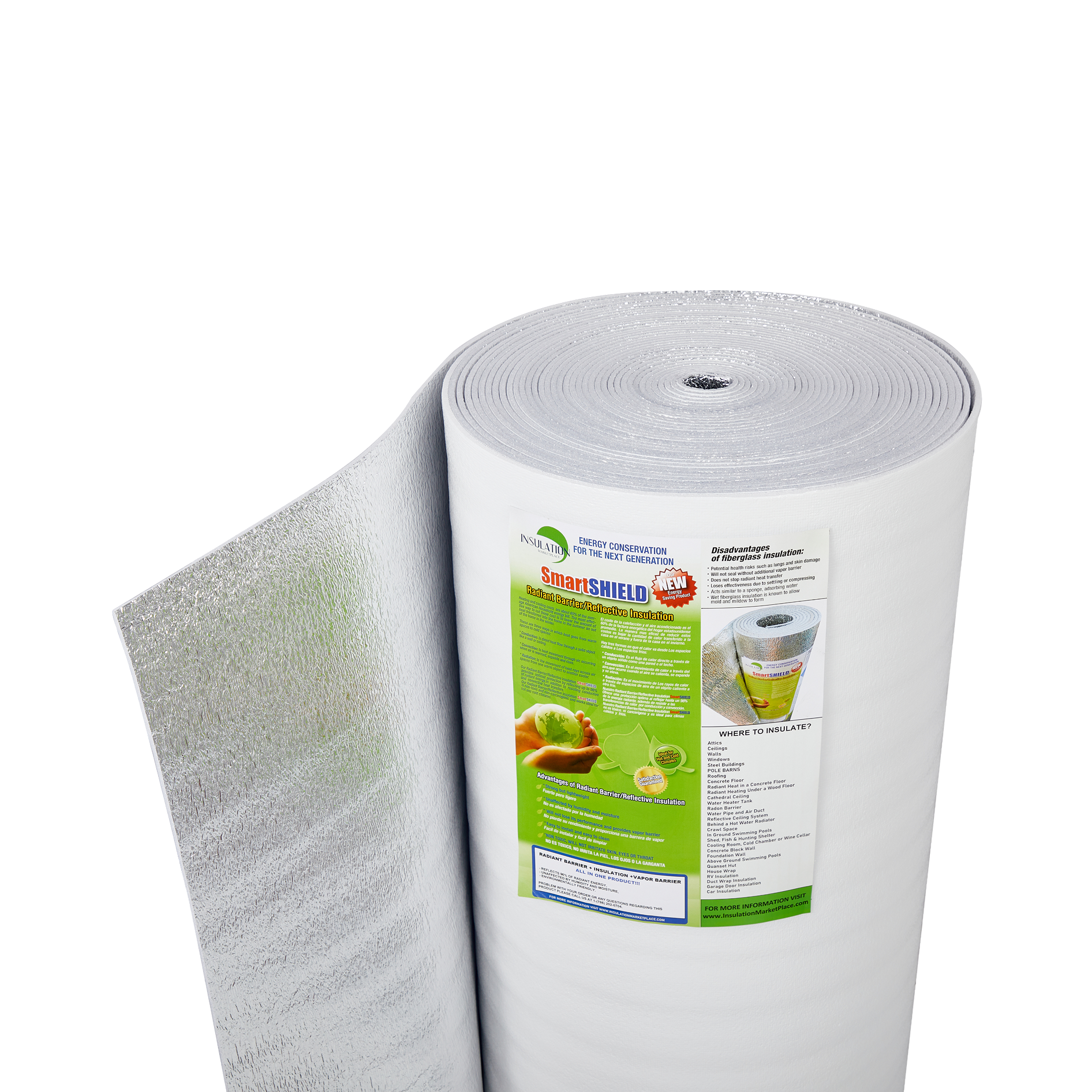

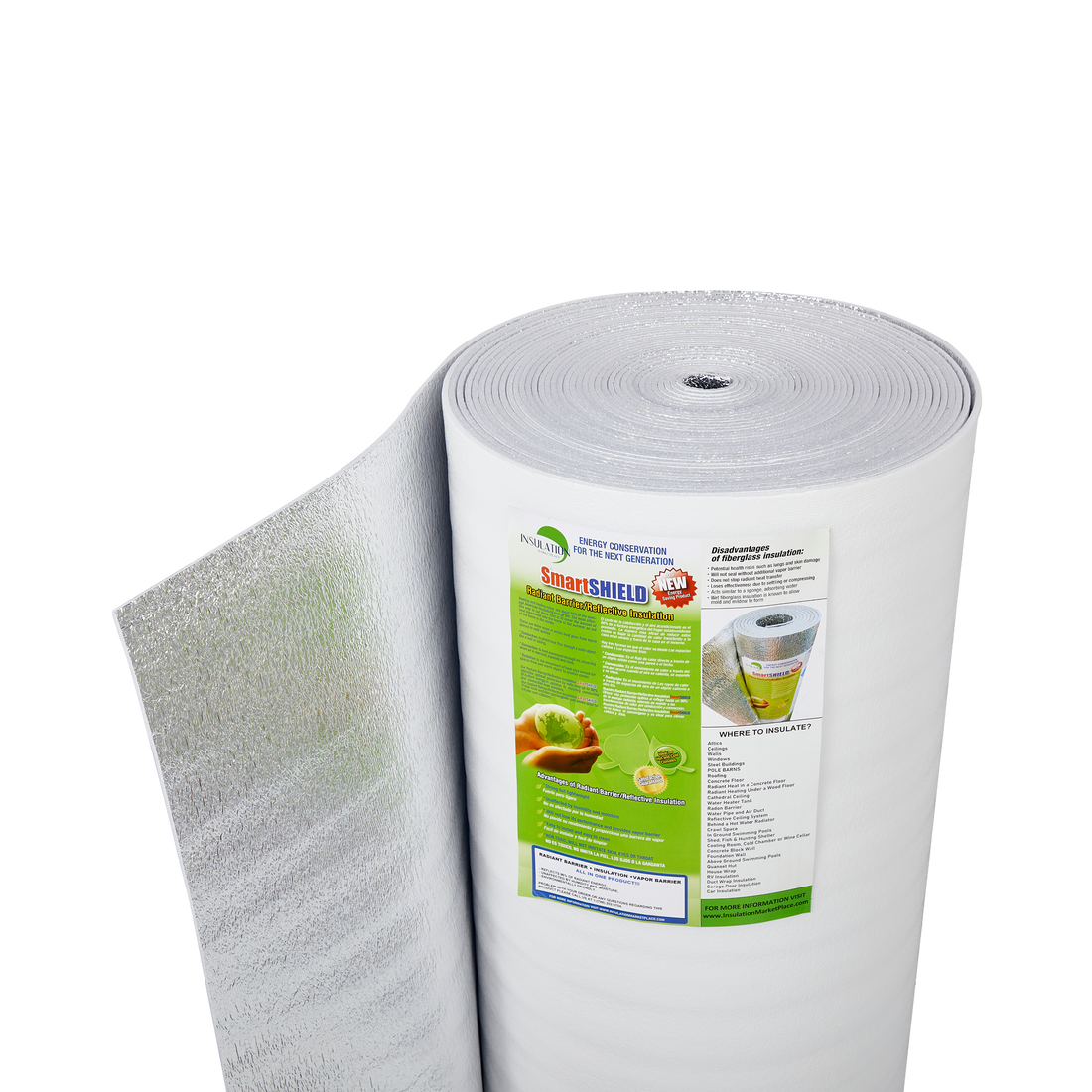

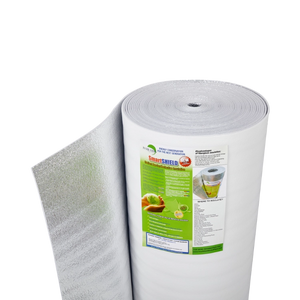

SmartSHIELD - 5mm Reflective Foam Insulation Roll - White / Foil

$54.95 USD
$100.00 USD
$54.95 USD

Description

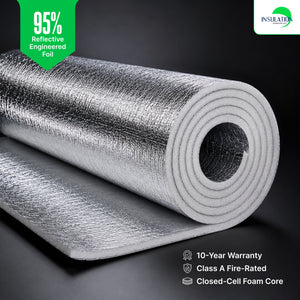

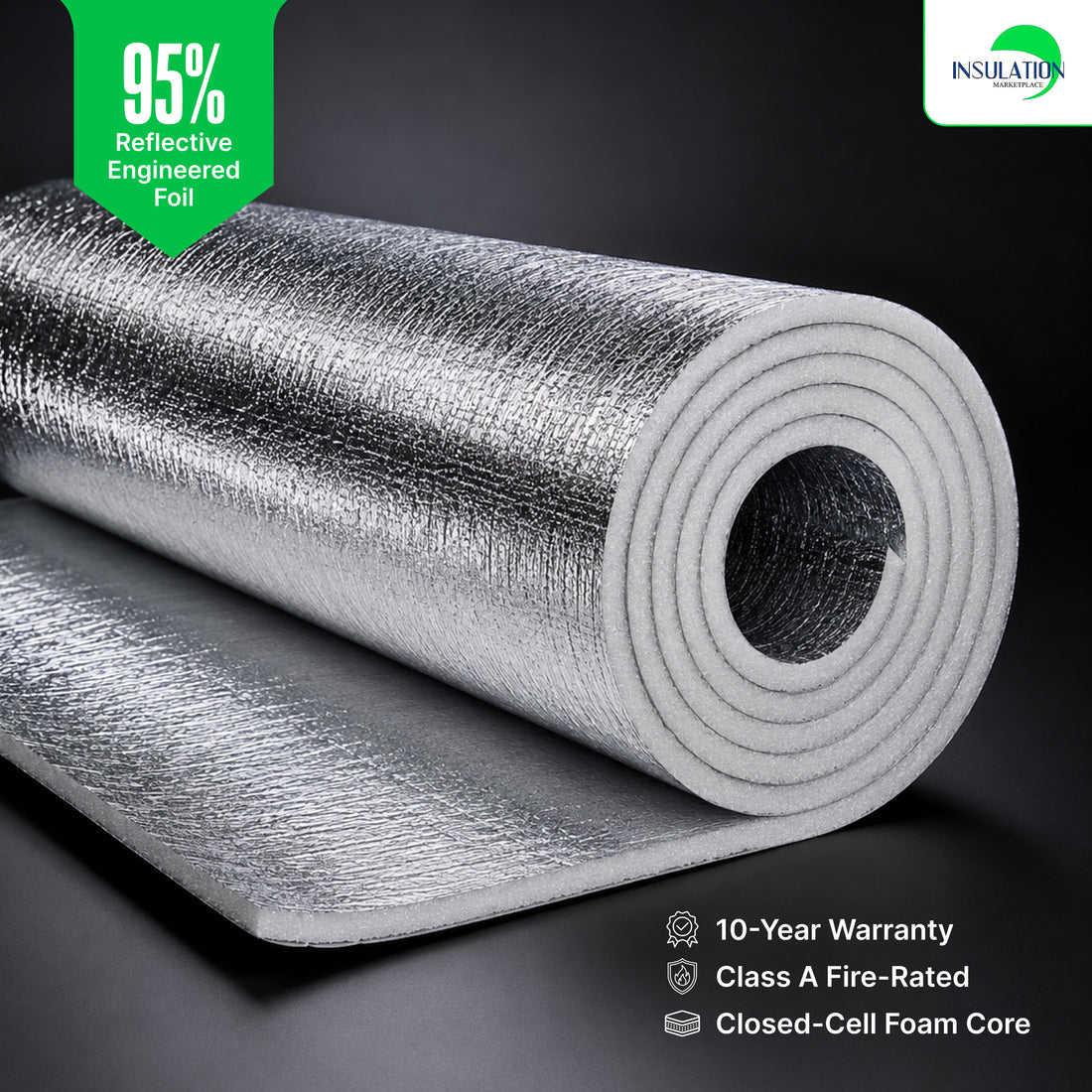

SmartSHIELD - 5mm Reflective Insulation Roll + White Film features a 5mm closed-cell polyethylene foam core between an engineered foil and a white film backing. This combination blocks up to 95% of radiant heat, resists moisture, and dampens noise. Lightweight yet durable, it provides superior insulation for homes, businesses, and industrial spaces, ensuring year-round comfort.

Thumbnail
SmartSHIELD - 5mm Reflective..
  • Product Details
  • Materials
  • Application
  • Technical Specs
  • Shipping Info

How Reflective Roll Insulation Works

SmartSHIELD rolls of reflective insulation help keep your space cool in the summer and warm in the winter by reflecting heat instead of absorbing it. The 5mm foam core is layered between engineered foil and a white plastic film to block 95% of radiant heat, reduce moisture, and dampen noise. This insulation roll is easy to install, suitable for DIY or professional projects, and works in all climates.

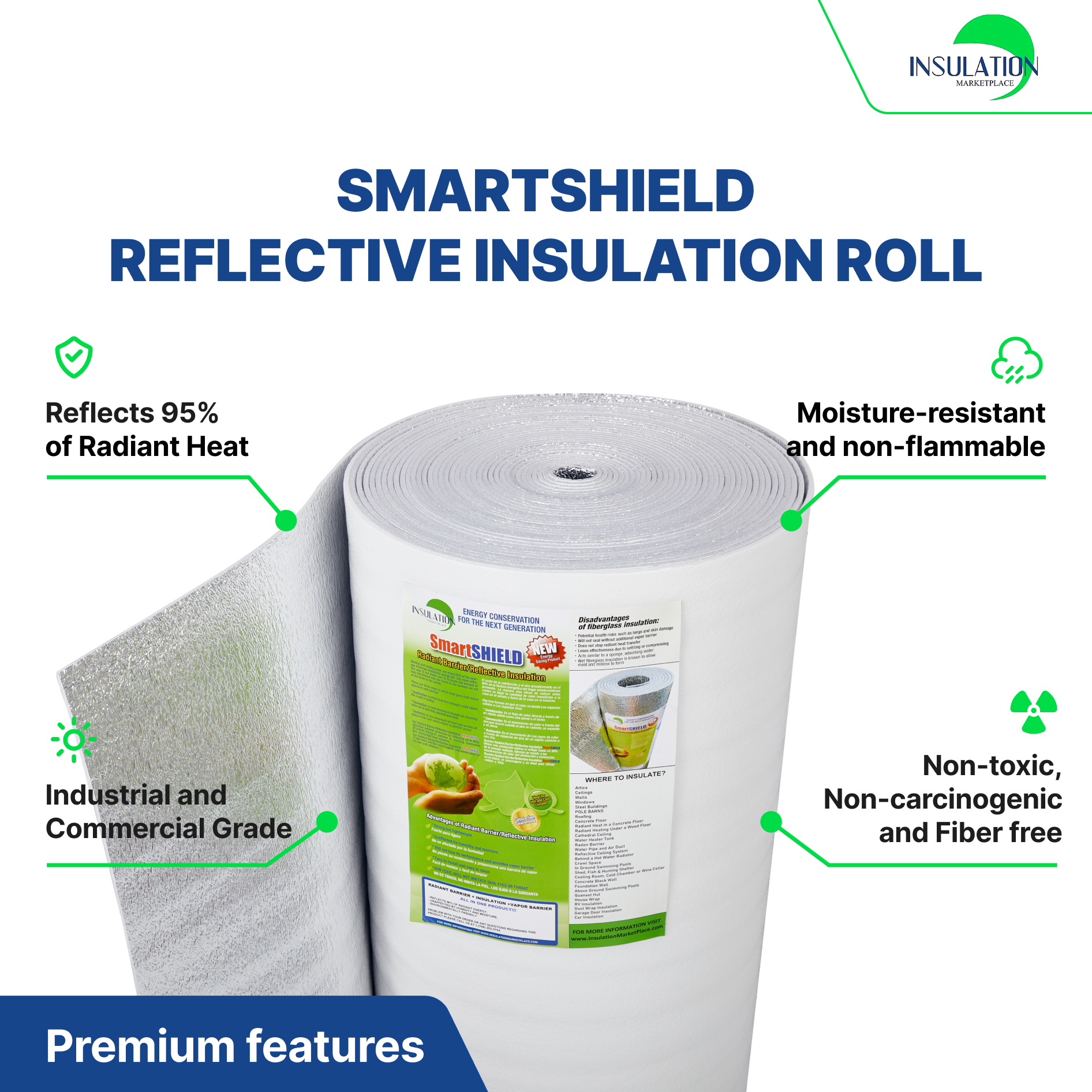

Key Benefits of SmartSHIELD Reflective Insulation

  • Easy to Install – Lightweight, flexible, and simple to cut.
  • Energy Efficiency – Acts as a radiant barrier that reflects heat, reducing heating and cooling costs.
  • Protects Against Moisture & Mold – Acts as a barrier to prevent dampness, keeping your space dry and safe.
  • Reduces Noise – Minimizes sound transmission.
  • Safe & Durable – Non-toxic, fire-resistant, and long-lasting.

Discover our full range of reflective foam insulation or browse through our 5mm perforated reflective foam insulation, 5mm reflective foam insulation options to find the perfect fit for your project!

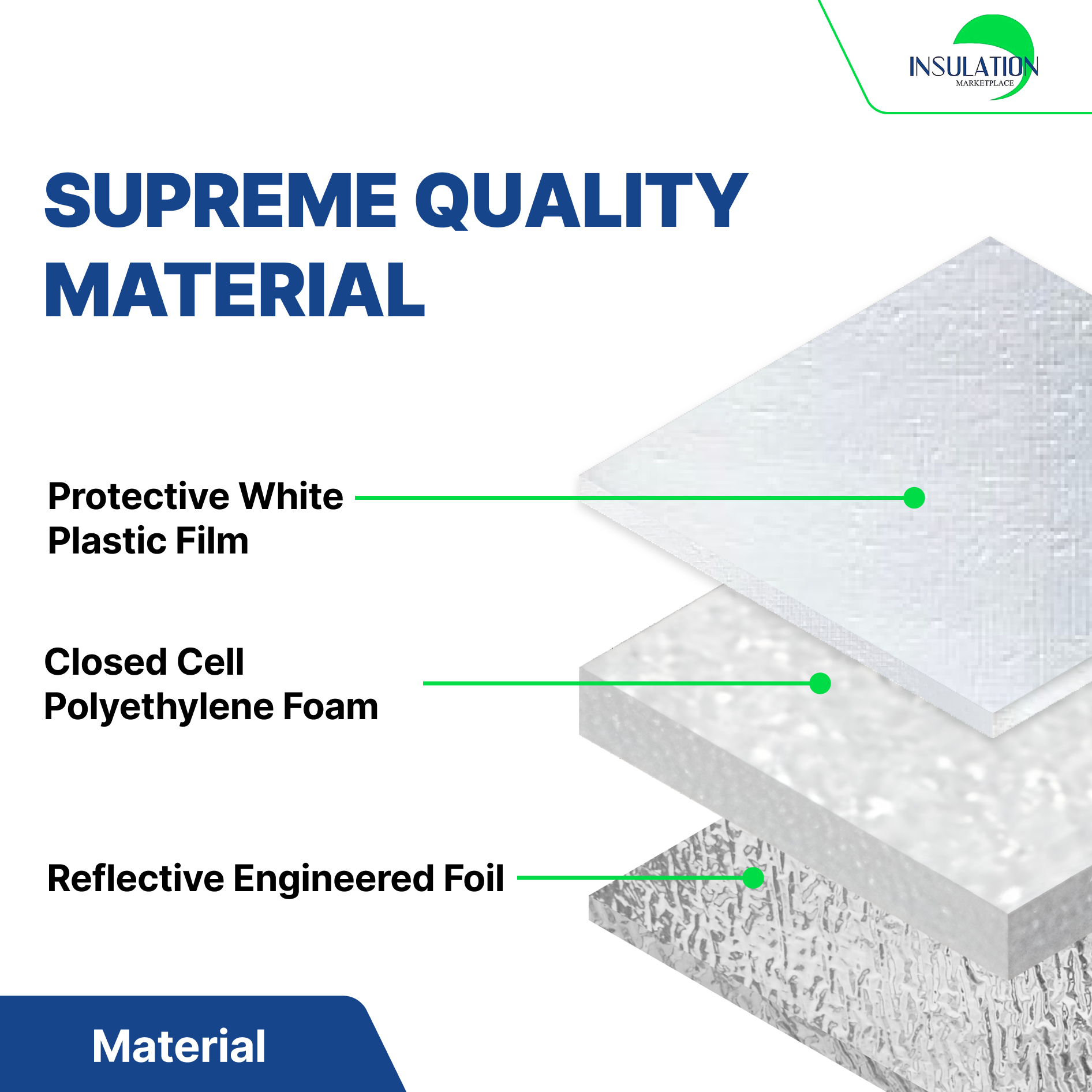

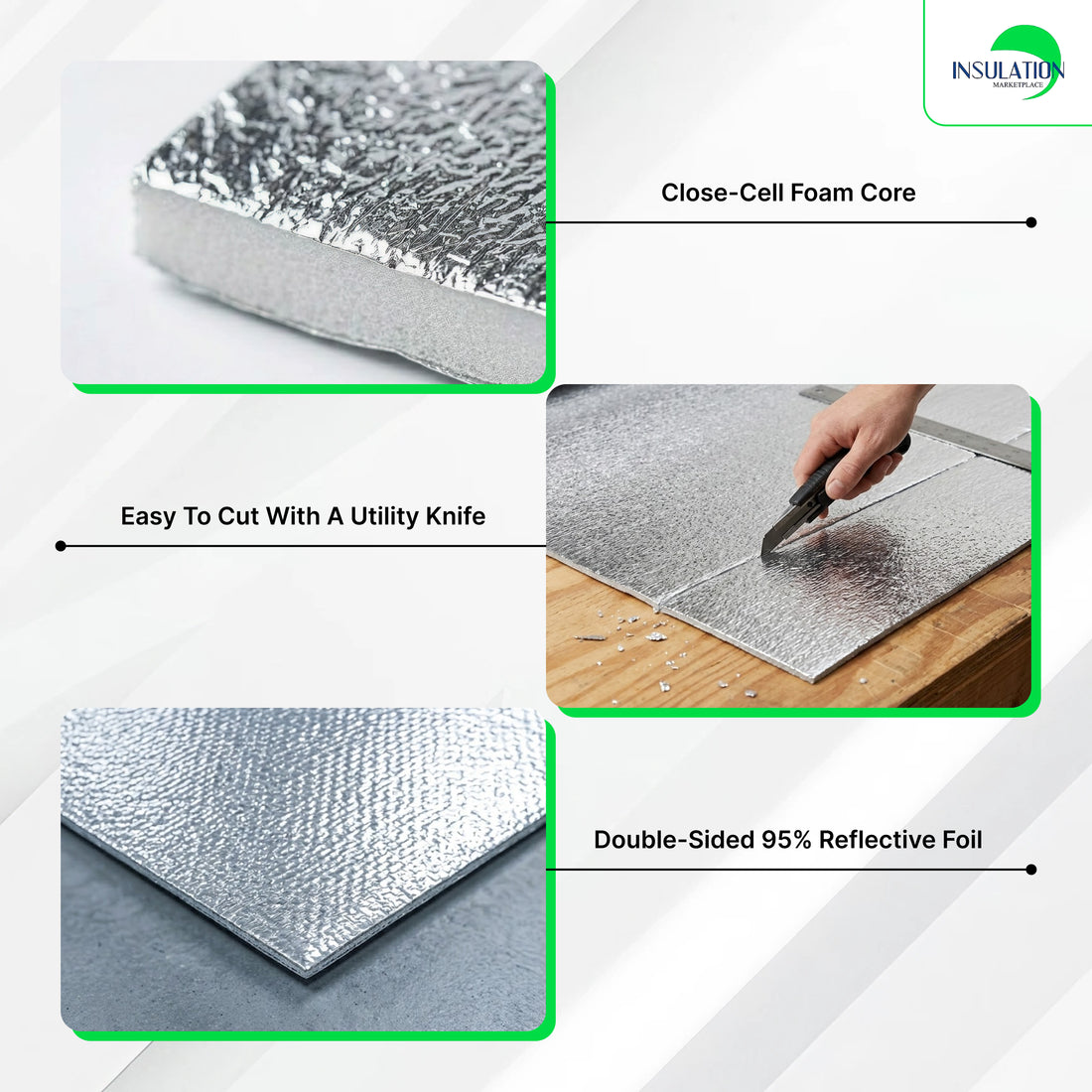

The SmartSHIELD Reflective Insulation + White Film is made with a 5mm closed-cell polyethylene foam core that provides thermal insulation and resists moisture. One side is covered with a highly reflective engineered foil that blocks up to 95% of radiant heat, while the other side features a white plastic film for added durability and easier handling.

SmartSHIELD rolls of reflective insulation can be used in a variety of applications, including:

Home & Residential Use

  • Attics, ceilings, walls, floors, basements, crawl spaces, and garages.

Commercial & Industrial Use

  • Steel buildings, pole barns, cold storage, and cavity walls.

Specialty Applications & Outdoor Use

  • Radiant heating, air ducts, water pipes, swimming pools, and sheds.

Dimensions & Structure

  • Thickness: 5mm
  • Available Sizes:
    • 16" x 10ft, 16" x 25ft, 16" x 50ft
    • 24" x 10ft, 24" x 25ft, 24" x 50ft
    • 48" x 10ft, 48" x 25ft, 48" x 50ft, 48" x 100ft
    • 60" x 50ft, 72" x 50ft

Performance & Efficiency

  • R-Value (Thermal Resistance):
    • 15.67 (ft²·h·°F/Btu) to 21.10 (ft²·h·°F/Btu)
  • Reflectivity: Blocks up to 95% of radiant heat
  • Temperature Range: -20°C to 80°C.

Durability & Safety

  • Fire Rating: Class 1 / Class A (ASTM E-84).
  • Mold Resistance: Inhibits growth (ASTM C-1338).
  • Weight: 0.242 kg/m².

TECHNICAL SPECIFICATIONS - SmartSHIELD-5mm / EN5

SmartSHIELD Insulation Measures and Tolerances of the Standard Product

Thickness: 5 mm

Technical Characteristics of the Product

Characteristics

Value

Standard

FOAM CELL STRUCTURE

Closed

-

AVERAGE WEIGHT PER m2

0,242 Kg/m2

-

FOAM DENSITY

34-54 Kg/m3

ASTM 1622

PERMEABILITY

Waterproof

Dir. UEAtc

WATER VAPOR PERMEABILITY

0.05 perms (gr/ft2*h*in.hg)

ASTM E 96/IRAM 1735

FLAME INDEX

0

ASTM E-84-99

SMOKE DEVELOPMENT

15

ASTM E-84-99

EMITTANCE

0.04

ASTM C-1371-98

FUNGAL RESISTANCE

Resistant/ It doesn't promote fungal growth-Mold

ASTM C-1338

DELAMINATION

It doesn't delaminate

ASTM C-1224-99

OPERATING TEMPERATURE

-4°F/ 180°F

ASTM C-1224

THERMAL RESISTANCE (R-Value - Heat Flow Down)

*A: 15.67; *B: 21.10 (ft2.h.°F/Btu)

ASTM STP1116
  • Same day FREE shipping.
  • Comes in a compact roll for easy handling.
  • 60-day money-back guarantee.

Customer Reviews

Based on 63 reviews
86%
(54)
13%
(8)
2%
(1)
0%
(0)
0%
(0)
H
Howard
Works OK

Used to insulate garage doors. Worked OK with a little left over.

J
James Nichols
Okay

It's okay works fine

A
Antoinette W Willis
Easy to install

Arrived on time easy to install

T
Troy
Works great if complete roll

Did my shop with this using 16in rolls. My third order of 50ft, came up short at 44ft so not able to complete, also have a slice thru a 4ft section so really only got about 35ft of usable. Will shop another brand due to this but if you get a good roll its good easy to work with stuff. Lays right between 2x4's. Also used one roll in RV to shore up underbelly heat loss. Updated review, seller refunded the full price due to issue with one roll. Will order again

L
LISA
Cooled instantly

Used to cover walls in storage building. Became cooler almost instantly with installation. Durable and easy to work with.

123

FAQ

Rolls of reflective insulation help reduce heat transfer by reflecting radiant heat, improving indoor comfort, and lowering energy bills.

Yes! It is lightweight, flexible, and easy to cut, making it ideal for DIY installation. It can also be professionally installed for larger projects.

Yes, it helps retain indoor warmth in winter by preventing heat loss, making it effective in both hot and cold climates.
