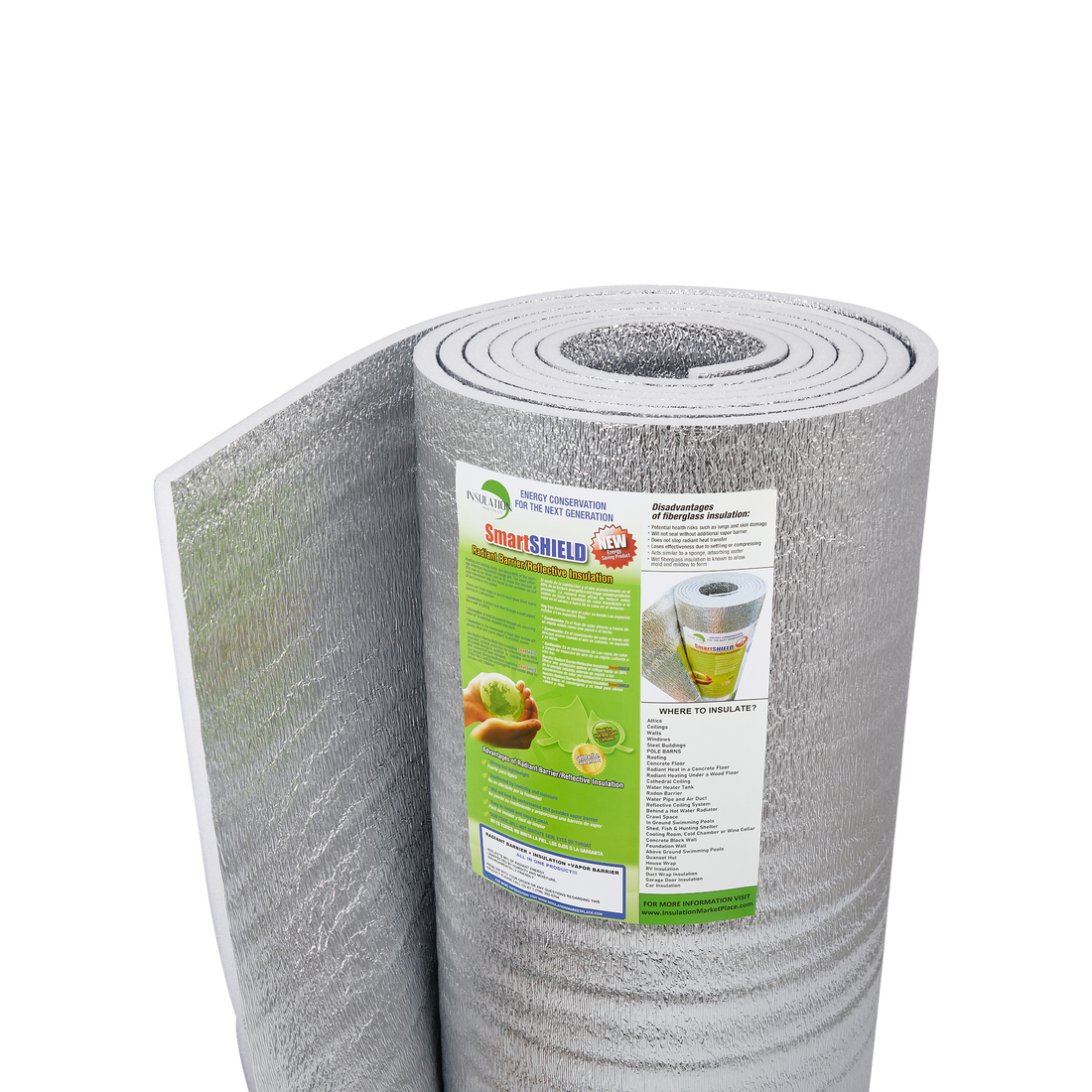

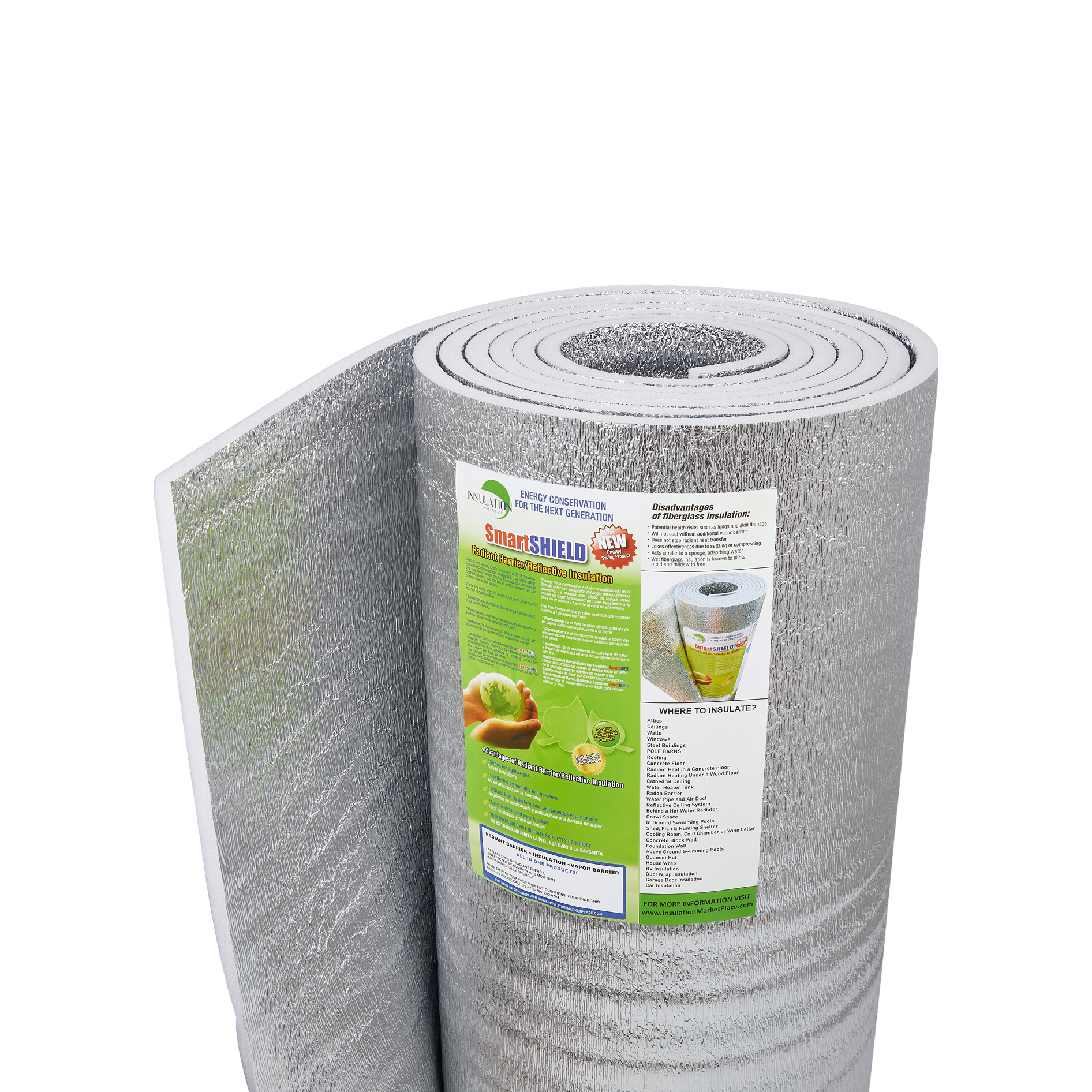

SmartSHIELD - 20mm Reflective Foam Insulation Roll - Foil / Foil

$119.95 USD
$119.95 USD

Description

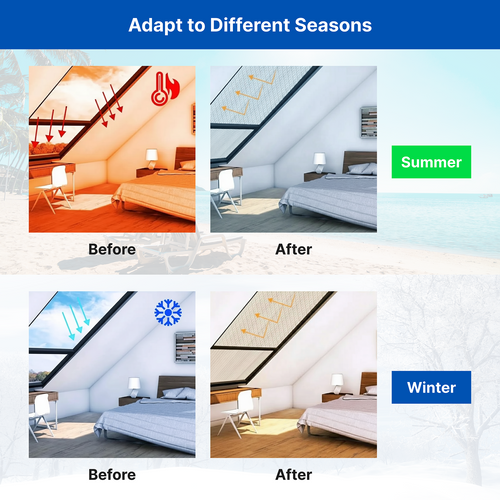

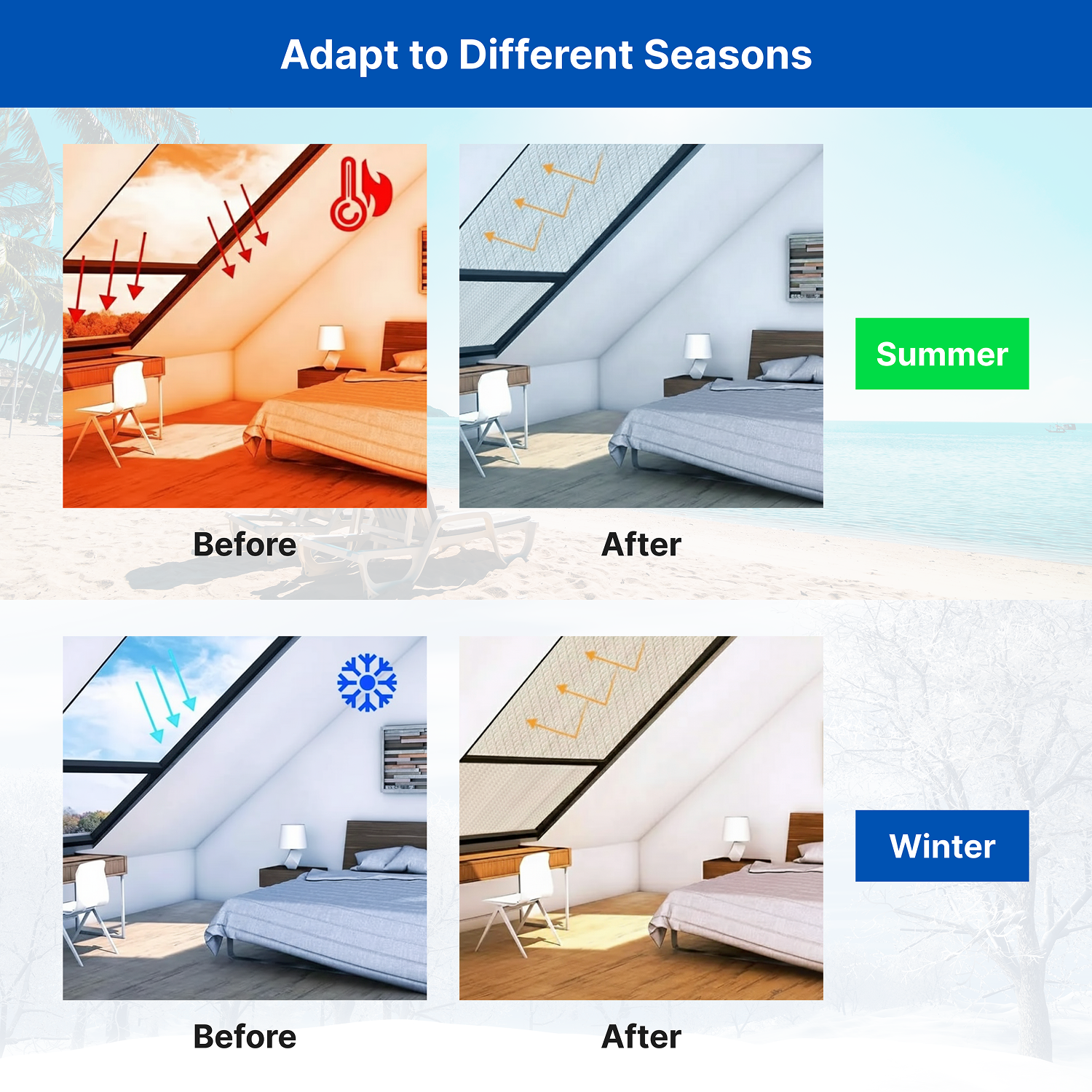

The SmartSHIELD 20mm Reflective Insulation Roll reduces heat transfer in homes and industrial spaces. It is a 20mm closed-cell polyethylene foam core sandwiched between double-sided engineered foil. This insulation reflects 96% of radiant heat. Besides, 60% of an average American household's energy bill which is heating and cooling costs can be simply cut with this foil insulation. In winter, it traps heat inside. In summer, it blocks outside heat. Our insulation roll products are lightweight yet strong and durable. It blocks moisture, slows fire spread, and reduces noise for a safer, quieter space.

SmartSHIELD - 20mm Reflective Foam Insulation Roll - Foil / Foil
SmartSHIELD - 20mm Reflective..
  • Product Details
  • Materials
  • Application
  • Technical Specs
  • Shipping Info

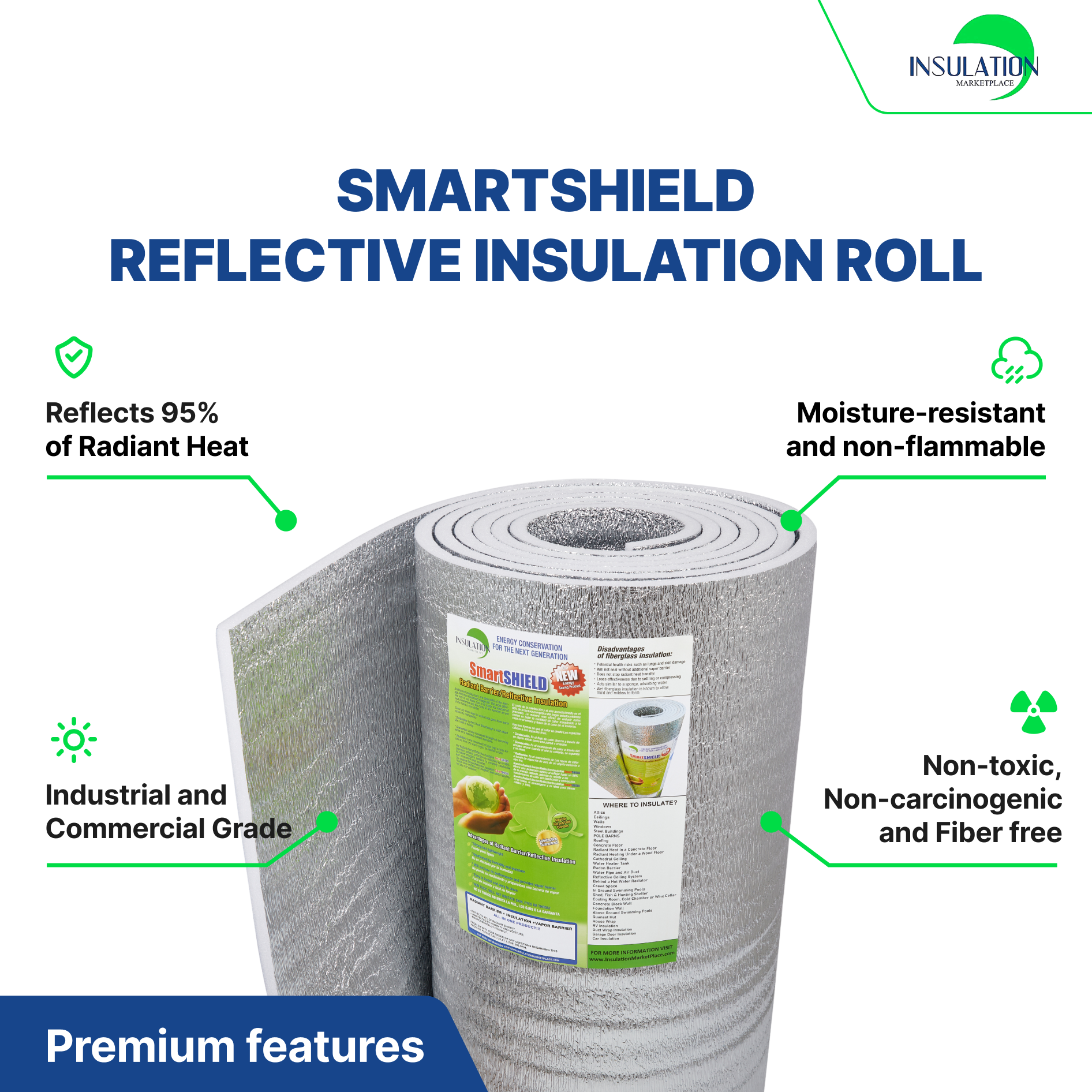

SmartSHIELD 20mm reflective insulation combines closed-cell polyethylene foam with a radiant barrier to regulate indoor temperatures. The foam core blocks heat conduction, preventing energy loss. The double-sided engineered foil reflects 96% of radiant heat, keeping spaces cool in summer and warm in winter. This insulation can reduce energy bills by up to 60%.

Key Features:

  • 20mm foam core enhances insulation performance and durability.
  • Double-sided engineered foil reflecting 96% of radiant heat.
  • Functions as a vapor barrier to block moisture accumulation.
  • This foil insulation roll functions as a vapor barrier to block moisture accumulation.
  • Fire-rated Class 1 / Class A, ensuring safety.
  • Easy to install, cut, and clean for hassle-free application.
  • Non-toxic, skin-friendly, and eco-friendly.
  • Remains effective in high-humidity areas without deterioration.

Shop our full line of reflective foam insulation or browse through our 20mm white reflective foam insulation for max thickness.

The 5mm reflective insulation is a great midweight option, while the 3mm reflective insulation roll (white foil) is ideal for cleaner installs.

Need radiant barrier + moisture control? Check out our foil insulation. For a flexible, double-sided option, go with the 3mm SmartSHIELD foil insulation roll.

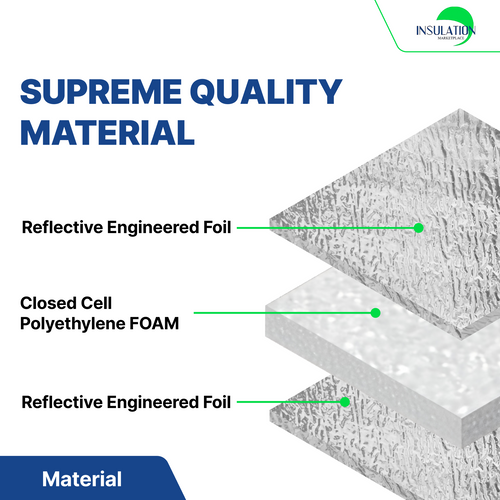

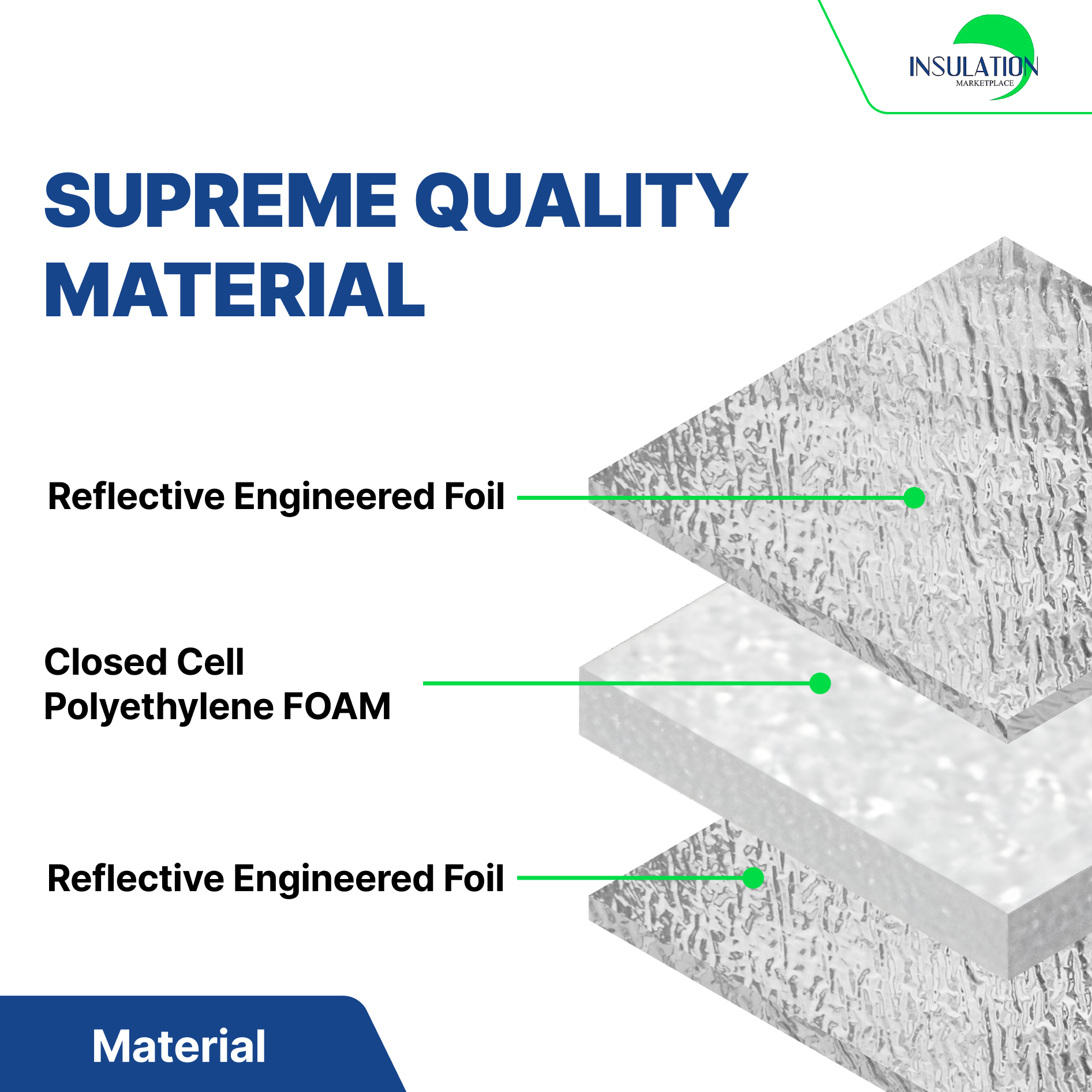

SmartSHIELD 20mm insulation features a closed-cell polyethylene foam core that traps air to block heat conduction and double-sided engineered foil that reflects radiant heat for better energy efficiency. It is designed to withstand extreme temperatures without losing performance and is waterproof, preventing mold growth and staying intact in humid conditions.

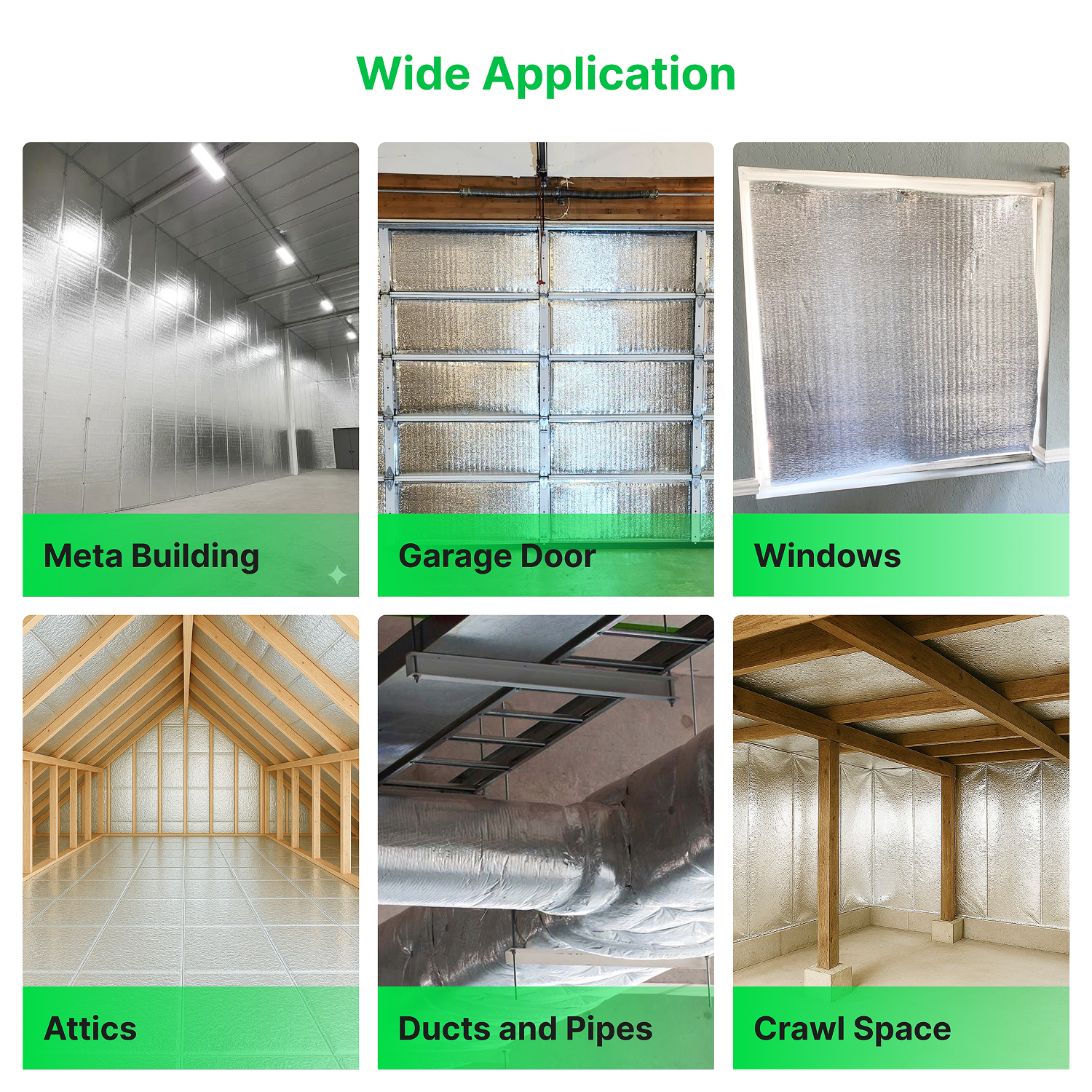

This insulation works for various residential, commercial, and industrial needs:

  • Homes & Buildings – Attics, ceilings, walls, crawl spaces, and foundations.
  • Garages & Sheds – Pole barns, sheds, fish & hunting shelters.
  • Industrial & Commercial – Steel buildings, Quonset huts, cooling rooms, cold chambers, wine cellars, and cavity walls.
  • Floors & Roofing – Concrete floors, radiant heating, roofing, and reflective ceilings.
  • HVAC & Plumbing – Air ducts, water pipes, water heater tanks, and behind radiators.
  • Swimming Pools – Helps maintain consistent temperatures.
  • Other Uses – House wrap, radon barrier, and concrete block walls.
  •  Dimensions:
    • 48" x 10ft
    • 48" x 25ft
  • Thickness: 20mm (0.8 inches).
  • R-Value: R-23 to R-29, depending on installation (indicates high thermal resistance for energy savings).
  • Fire Rating: Class 1 / Class A, safe for homes and businesses.
  • Moisture Resistance: Waterproof and resistant to mold growth

TECHNICAL SPECIFICATIONS -SmartSHIELD -20mm / EN20

SmartSHIELD Insulation Measures and Tolerances of the Standard Product

Thickness: 20 mm

Technical Characteristics of the Product

THICKNESS: 0.8 (in) ± 7%

LENGTH: 0,98 (ft)

WIDTH: 4,0±0,032 (ft)

TECHNICAL CHARACTERISTICS OF THE PRODUCT

CHARACTERISTICS

VALUE

STANDARD

FOAM CELL STRUCTURE

CLOSED

-

EFECTIVE WIDTH

4 ft

-

AVERAGE WEIGHT

0.1264 lb/ft2

-

THERMAL CONDUCTIVITY

0.0186 Btu/ft.h.°F

ASTM C 518

WATER VAPOR PERMEANCE

0.011 PERMS (IMPERMEABLE)

ASTM E 96-05

FLAME INDEX

0

ASTM E-84-10

SMOKE DEVELOPMENT

0

ASTM E-84-10

EMITANCE

0.04

ASTM C-1371-04

FUNGI RESISTANCE

NO GROWTH

ASTM C 1338

ADHESIVE PERFORMANCE

NO BLEEDING/NO DELAMINATION

ASTM C-1224

TEMPERATURE AND HUMIDITY RESISTANCE

NO CORROSION/NO DELAMINATION/NO LOSS OF METALIZATION

ASTM C-1258-08

PLIABILITY

NO CRACKING/ NO DELAMINATION

ASTM C-1224

TEMPERATURE RANGE

-22 °F/180 °F

ASTM C-1224

TENSILE STRENGTH AT BREAK (MD)

23.8 lbf/in

ASTM D-638

UV RESISTANCE

500 HOURS (0,21Btu/ft2,122°F)

ASTM D-638

R VALUE (HEAT FLOW DOWN)

A: 23 B: 29 (ft2h.°F/Btu)

ASTM D-638
  • Same day FREE shipping.
  • Comes in a compact roll for easy handling.
  • 60-day money-back guarantee.

Customer Reviews

Based on 20 reviews
95%
(19)
5%
(1)
0%
(0)
0%
(0)
0%
(0)
L
Linda
It works

I have bought 4 of 48x100 rolls and 1 36x50 roll and will be ordering 1 more 48x100 to finish insulating a 40x8 HC shipping container. I used 2 layers of insulation all around, with a 2" air space between layers.I tried several different spray adhesives and tapes to secure it to the walls and cover air gaps. The winner was Gorrila tape. Works great... that knowledge takes the sting out of the price per roll.Most importantly, this stuff is awesome! I noticed a difference with the cold and the heat temps.I'm on my 6th order, so I have bought the product again!

C
Charles Alford
Fast shipping

If you cut in long strips, ie. 8' or16 ' for a double wide door, there is not enough product to complete door. To complete door you must cut in the 48" legenth. Product doors fine

F
Farmer from D., ME
Great for the price

I used this product to insulate from the top of the basement walls to the sills. It was easy to cut and install. There has been a marked difference with no cold air entering the basement.

B
B. Jennings
Makes a big difference

I have used this stuff in a variety of places in my house. It is very versatile for insulating.I put it in the space between the top of my basement walls and bottom of the main floor (inside). The furnace ran noticeably less the first winter (with fiberglass behind it).Because this comes in a roll, the closer to the middle, the more curled the product will be. Bending it in the opposite direction helps. Also, have a plan to secure it down as it will want to bend. Or, set something on top of it and lay it flat for a few days.The 20mm product is 3/4 inch thick and is best cut with a serrated knife or scissors.

A
Amazon Customer
Thick and does the job.

Easy to cut and install.

123

FAQ

Yes, it is durable and weather-resistant, making it suitable for outdoor use.

SmartSHIELD 20mm insulation is non-toxic and skin-friendly. It does not cause irritation, blocks radiant heat better than fiberglass.

Yes, it is lightweight, easy to cut, and allows for quick installation.
