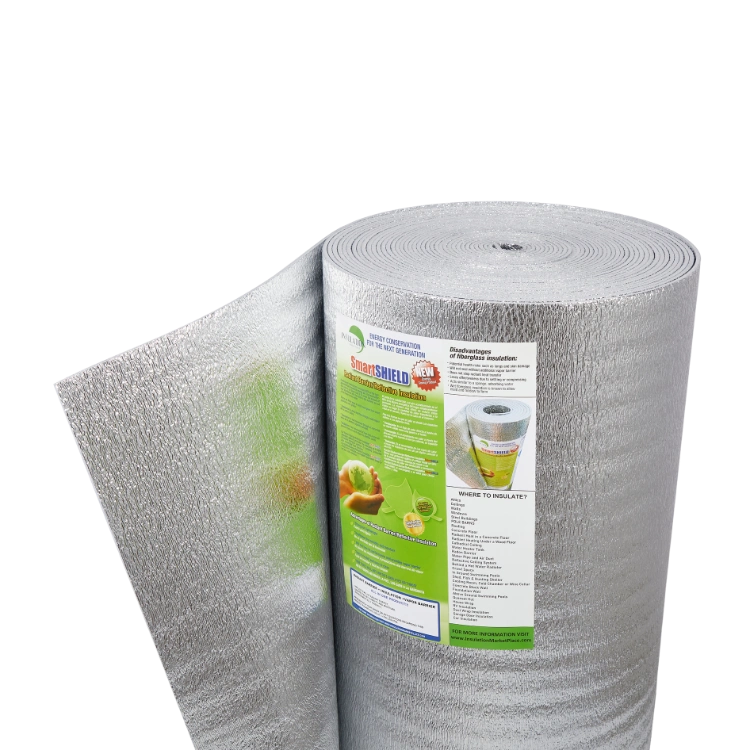

SmartSHIELD - 1/4 Inch Reflective Foam Insulation Roll - Foil / Foil

$89.95 USD
$89.95 USD

Description

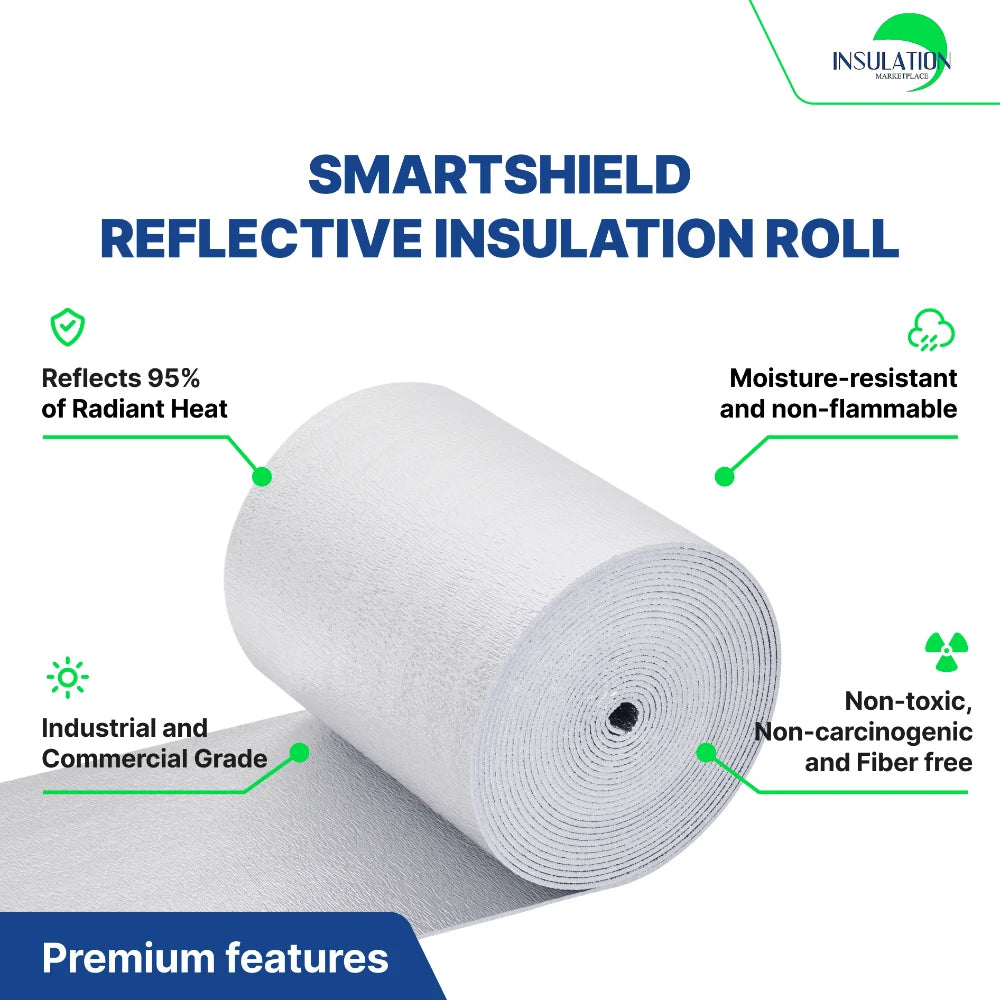

SmartSHIELD 1/4-inch Premium Foam Core Reflective Insulation Roll delivers superior thermal insulation performance. Its double-sided engineered foil together with a closed-cell polyethylene foam core enables the product to reflect 95% of radiant heat. These SmartSHIELD 6mm insulation rolls can transform any residential and commercial building needs with high energy efficiency levels.

Thumbnail
SmartSHIELD - 1/4 Inch..
  • Product Details
  • Materials
  • Application
  • Technical Specs
  • Shipping Info

SmartSHIELD 6mm insulation foam roll stands out as an innovative solution that delivers excellent heat-blocking performance. Its layered insulation forms an effective barrier that minimizes energy needs for both heating and cooling over the entire year.

Key Benefits:

  • Durability: Resists moisture and humidity for consistent performance.
  • Flexibility: Flexible installment options for applications, including roofs, walls, and attics.
  • Lightweight Design: Facilitates easy handling and installation.
  • Easy to Use: Easy trimming for customizability for perfect fitting results.

Features:

  • Non-Toxic Composition: Non-hazardous to both skin and respiratory systems, suitable for indoor use.
  • Fire Resistance: Class 1/Class A rating for enhanced safety.
  • Exceptional Thermal Resistance: R-values ranging from 15.87 to 21.50, significantly improving energy efficiency.

Discover our full range of reflective foam insulation or browse through our 1/4 inch white reflective foam insulation options to find the perfect fit for your project!

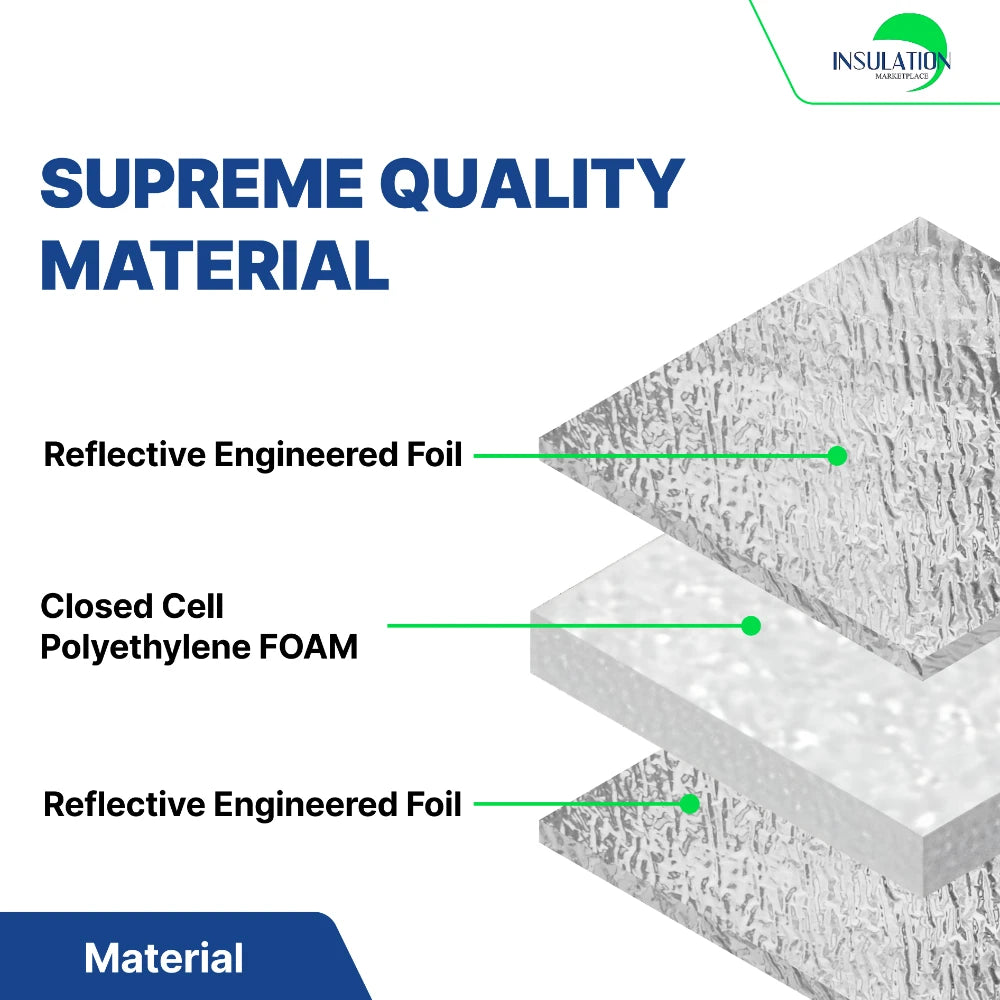

SmartSHIELD 6mm insulation combines closed-cell polyethylene foam with double-sided engineered foil to create an effective heat-resistant barrier for residential and commercial buildings. The closed-cell foam core blocks heat transfer and works efficiently in any climate, while the reflective foil on both sides reflects 95% of radiant energy, helping maintain indoor temperatures and reduce energy costs. Made from non-toxic materials, it is safe for use in homes and poses no risk to skin, eyes, or throat.

SmartSHIELD 6mm insulation foam roll transfers and reflects temperature effectively throughout residential buildings and commercial properties, including these areas:

  • Attics, ceilings, and walls
  • Steel buildings and pole barns
  • Roofing and concrete floors
  • Radiant heating systems
  • Water heater tanks and pipes
  • Crawl spaces and swimming pools
  • Sheds, hunting shelters, and cooling rooms
  • Concrete block and foundation walls
  • House wrap and Quonset huts
  • Dimensions: Available in
    • 2ft x 50ft
    • 3ft x 50ft
    • 4ft x 50ft
    • 6ft x 50ft
    • 4ft x 100ft
  • Thickness: 6mm (1/4 inch)
  • R-Value: R-15.87 to R-21.50 effectively prevents heat transfer and minimizes interior losses.
  • Fire Resistance: Rated Class 1/Class A.
  • Moisture Resistance: Thanks to its waterproof nature and mold-resistance properties, SmartSHIELD 6mm insulation provides lasting performance against moisture.
CHARACTERISTICS VALUE STANDARD
FOAM CELL STRUCTURE Closed -
AVERAGE WEIGHT PER m2 0,242 Kg/m2 -
FOAM DENSITY 34-54 Kg/m3 ASTM 1622
PERMEABILITY Waterproof Dir. UEAtc
WATER VAPOR PERMEABILITY 0.033g/m2hkPa-0.05perms(gr/ft2hin.hg) ASTM E-96/IRAM 1735
FLAME INDEX 0 ASTM E-84
SMOKE DEVELOPMENT 15 ASTM E-84
EMMITANCE 0,05 ASTM C-1371-98
FUNGAL RESISTANCE Resistant/Does't promote fungal growth ASTM C-1338
DELAMINATION Doesn't delaminate ASTM C-1224-99
OPERATING TEMPERATURE -20°c / 80°c ASTM C-1258
THERMAL RESISTANCE R-VALUE *A: 15.87; *B: 21.50 (ft2.h.°F/Btu) ASTM C-236

SmartSHIELD insulation rolls are processed the same day with free shipping. Our return policy includes a 60-day money-back guarantee.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mike O.
Sticky

Perfect for my project

FAQ

SmartSHIELD 6mm insulation rolls are efficient thermal insulation through their core of closed-cell polyethylene foam that integrates double-sided engineered foil surfaces.

Yes, it has a Class 1/Class A fire rating.

Yes, its high thermal R-values (R-15.87 to R-21.50) reduce energy consumption and lower utility bills.
